Why Finding the Right 5-Axis CNC in Oak Brook Matters
If you need 5-axis CNC in Oak Brook, here are the fastest ways to find reliable local services:
- Search regional directories like IQS Directory for Illinois-based 5-axis shops
- Look for ISO 9001 or AS9100-certified shops in the Chicago metro area — Oak Brook sits at the center of a dense manufacturing corridor
- Contact shops directly with your CAD files for a quick quote and DFM feedback
- Check lead times upfront — reputable shops typically run 2–6 weeks, with rush options available
- Ask about materials and tolerances — quality 5-axis shops should handle aluminum, titanium, stainless steel, and exotic alloys to ±0.005 mm or tighter
Getting the right precision parts made is hard enough. Getting them made locally, on time, and to spec is even harder.
For tube and pipe manufacturers in the Oak Brook area, this challenge is especially real. Weld bead removal, scarfing systems, and custom tooling all demand tight tolerances and complex geometries — exactly the kind of work where 5-axis CNC machining earns its keep. Yet many buyers still settle for shops that miss deadlines or deliver inconsistent quality. According to industry data, 1 in 10 deliveries from average machine shops arrives late — a costly problem when production lines are waiting.
The good news: the Chicago metro area, including Oak Brook and the surrounding Illinois corridor, has access to serious multi-axis machining capability. You just need to know where to look and what to ask.
I’m Jarek Szpakowski, founder of ITSE Inc. in Lake Zurich, IL — a precision CNC shop specializing in custom tube mill equipment, ID/OD scarfing systems, and 5-axis CNC in Oak Brook and the broader Chicagoland region. Our team works daily with manufacturers who need complex, tight-tolerance parts made right the first time.

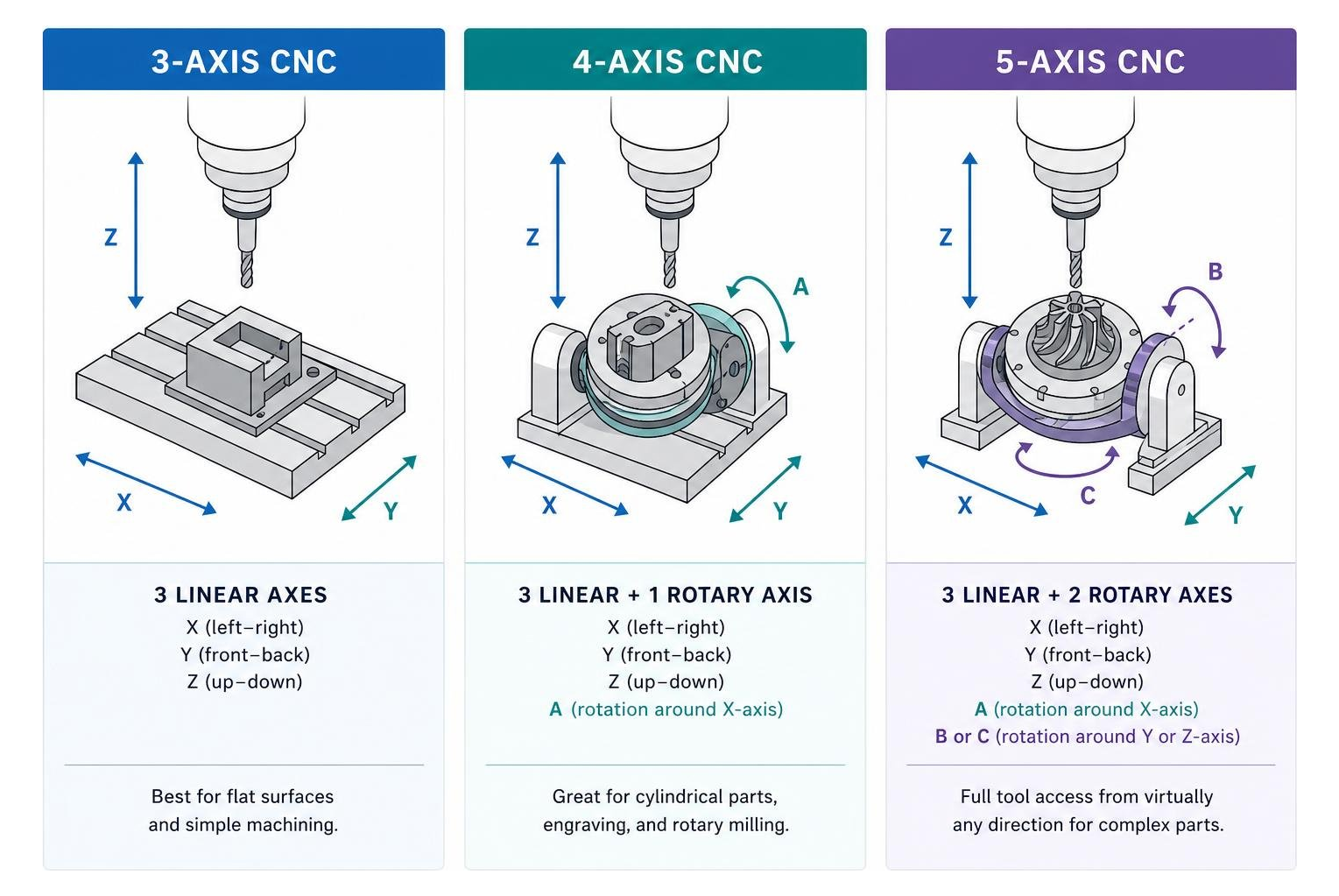

Understanding the Mechanics: 3-Axis vs. 4-Axis vs. 5-Axis CNC Machining
To appreciate what a 5-axis CNC Oak Brook shop can do, it helps to understand what is happening under the hood. Traditional machining relies on three linear axes: X (left to right), Y (front to back), and Z (up and down). While this is perfect for flat brackets or basic milling, it becomes incredibly tedious when you need to machine multiple sides of a part. You have to stop the machine, manually re-fixture the part, and recalibrate. Every manual touchpoint introduces the risk of alignment errors.
A 4-axis machine adds a rotary axis (usually the A-axis, rotating around the X-axis). This is a massive step up for cylindrical parts, engraving, or continuous rotary milling, but it still limits tool access to certain angles.
Enter 5-axis CNC machining. By adding a second rotary axis (typically the B or C-axis), the cutting tool can approach the workpiece from virtually any direction. If you want to dive deeper into the fundamentals of how these systems operate, check out The No Nonsense Guide To Understanding Cnc Machining.
The movement of the tool relative to the part is often coordinated using advanced control systems, such as those detailed on 5 Axis – CNC, Mill, and Machining Solutions | FANUC America. These control systems manage advanced math algorithms in real-time, matching the spindle’s linear travel with the rotary platter’s rotation.
There are two primary ways a 5-axis machine operates:
- Simultaneous 5-Axis Machining: The cutting tool and the rotary axes move at the same time across all five paths. This is essential for highly complex, organic curves, such as turbine impellers, aerodynamic aerospace bulkheads, and custom medical implants.
- 3+2 Indexing (Positional 5-Axis): The machine uses the two rotary axes to tilt and lock the workpiece into a specific angle, then executes standard 3-axis milling. This allows the tool to reach deep pockets or angled holes without manual repositioning, offering incredible rigidity for heavy-duty metal removal.
In terms of physical configurations, you will typically see two main styles of machines:
- Trunnion Style: The rotary motion is handled entirely by the worktable, which tilts and rotates. This is incredibly stable and best suited for heavy or compact parts.
- Swivel-Rotate Style (Articulated Head): The spindle head tilts and rotates while the table remains stationary. This is ideal for machining massive, heavy components that would be too heavy for a tilting table to support safely.
| Machining Type | Linear Axes | Rotary Axes | Setup Requirements | Best Suited For |
|---|---|---|---|---|
| 3-Axis | X, Y, Z | None | Multiple manual setups for multi-sided parts | Flat plates, simple brackets, and basic prototypes |
| 4-Axis | X, Y, Z | A (or B) | Single setup for cylindrical or indexed features | Helical gears, shafts, and rotational milling |
| 5-Axis | X, Y, Z | A, B, or C | Single setup for highly complex geometries | Impellers, turbine blades, orthopedic implants, and custom tube mill tooling |
Key Advantages of 5-axis CNC Oak Brook Services
Opting for local 5-axis CNC Oak Brook services provides distinct manufacturing advantages that directly impact your bottom line, lead times, and product quality.
1. Mastering Complex Geometries
If your project features undercuts, compound angles, deep internal cavities, or continuous organic curves, traditional 3-axis setups simply will not cut it. A 5-axis machine can dynamically tilt the tool to reach features that would otherwise be physically impossible to machine. This design freedom opens up new possibilities for lightweighting aerospace components or creating highly optimized fluid-flow geometries.
2. Single-Setup Efficiency
Every time an operator has to touch a part, flip it, and re-clamp it in a new fixture, you lose money. Manual setups consume valuable labor hours and introduce stacking tolerances. If the second setup is misaligned by even a fraction of a millimeter, the entire part could end up in the scrap bin. 5-axis machining allows you to complete five sides of a part in a single setup, drastically reducing human error and maximizing part-to-part consistency. For local businesses, accessing Precision 5 Axis Cnc Machining Services In Lake Zurich means you can leverage this single-setup efficiency right here in the Chicago suburbs.
3. Superior Surface Finishes
In 5-axis machining, the cutting tool can be oriented to maintain the optimum cutting angle and constant chip load. By keeping the cutter closer to the workpiece surface, you can use shorter, more rigid cutting tools. Shorter tools minimize vibration and tool deflection, resulting in an incredibly smooth, mirror-like surface finish. This often eliminates the need for time-consuming secondary hand-polishing or post-process grinding.
4. Drastically Reduced Lead Times
By consolidating multiple machining operations into one, your parts do not have to sit in a queue waiting for different machines or setups. They go from raw block to finished component much faster. When combined with local logistics in the Oak Brook, Schaumburg, or Lake Zurich areas, your overall turnaround times drop from months to weeks.
Local Industries and Materials Suited for Multi-Axis Machining
The Chicagoland area is a powerhouse for high-tech manufacturing, and several key sectors in our local footprint rely heavily on multi-axis capabilities. If you are looking for specialized regional insights, you can read more about how these services integrate into local supply chains in Top Precision Cnc Machining Services In Lake Zurich For Your Manufacturing Needs.
Key Industries Served
- Aerospace & Defense: High-performance components like bulkheads, engine housings, and landing gear parts require absolute precision and must be milled from tough, lightweight materials.
- Medical Devices: Bone plates, surgical instruments, and orthopedic implants feature organic, ergonomic shapes that require simultaneous 5-axis toolpaths and biocompatible materials.
- Tube & Pipe Industry: At ITSE Inc., we manufacture custom tube mill equipment, precision OD bead choppers, and ID scarfing systems. The tooling for these systems requires complex radii and extremely tough tool steels to withstand continuous high-stress operations.
- Automotive & Motorsports: Complex engine blocks, cylinder heads, and custom suspension brackets benefit from the speed and accuracy of multi-axis setups.
Material Versatility
A high-quality 5-axis CNC Oak Brook machine shop must have the expertise to cut a wide variety of materials, ranging from easy-machining plastics to ultra-hard exotic alloys:
- Aluminum (6061-T6, 7075-T6): The gold standard for aerospace brackets and lightweight enclosures. It machines fast, dissipates heat well, and anodizes beautifully.
- Stainless Steel (304, 316, 17-4 PH): Highly corrosion-resistant and tough. Excellent for medical instruments, food processing equipment, and marine components.
- Titanium (Ti-6Al-4V): Prized for its incredible strength-to-weight ratio and biocompatibility, though it requires specialized, rigid setups and precise thermal management to machine without destroying tools.
- Exotics (Inconel, Hastelloy): Extremely heat-resistant nickel-based alloys used in aerospace exhausts and chemical processing. These materials require low spindle speeds, high torque, and advanced cooling strategies.
- Engineering Plastics (PEEK, Delrin, Nylon): High-performance plastics used for electrical insulators, medical manifolds, or low-friction wear pads. PEEK, in particular, is highly stable but requires careful stress-relief during machining.
Sourcing 5-Axis CNC Machining in Illinois
If you are a purchasing manager or engineer based in Oak Brook, Addison, Carol Stream, or Schaumburg, you do not need to outsource your complex machining to the other side of the country or overseas. The local Illinois manufacturing ecosystem is highly sophisticated.
When sourcing a local partner, it is important to distinguish between prototyping shops and high-volume production houses. Some shops excel at turning around a single, highly complex prototype in a few days, while others are optimized for “lights-out” high-volume production using automated pallet changers. If you are currently in the design phase and want to avoid common pitfalls, take a look at our guide on Rapid Cnc Prototyping And How To Avoid Making A Mess Of It.
To find qualified regional manufacturers, directories like the 5 Axis CNC Machining in Illinois – IQS Directory are excellent starting points. They allow you to filter local shops by their certifications, such as ISO 9001:2015 (for general quality management) or AS9100 (the rigorous standard required for aerospace and defense work).
Frequently Asked Questions About Local Machining
What is the Typical Lead Time for 5-axis CNC Oak Brook Projects?
Standard lead times for custom 5-axis machining in the Chicago suburbs typically range from 2 to 6 weeks. This timeline accounts for material sourcing, CAM programming, machine setup, cutting, and post-processing (such as anodizing or heat treatment). However, if your production line is down or you have an urgent R&D deadline, many local shops offer “hot” or rush jobs that can reduce lead times to just a few days, provided the raw material is readily available.
How Do Shops Ensure Quality for 5-axis CNC Oak Brook Parts?
Quality assurance in multi-axis machining relies on a combination of in-process monitoring and post-machining inspection:
- In-Machine Probing: Spindle-mounted probes automatically measure the part’s location and calibrate the machine’s kinematics before the first cut is made.
- Coordinate Measuring Machines (CMM): After machining, parts are placed on a CMM in a climate-controlled metrology lab to verify critical dimensions down to ±0.005 mm (or tighter).
- Certifications: Working with an ISO 9001:2015 certified shop ensures that every step of the manufacturing process is documented, traceable, and repeatable.
What Materials Can Be Machined Locally?
Local Illinois shops are fully equipped to handle everything from standard aluminum alloys (6061, 7075) and stainless steels (304, 316) to high-strength titanium, heavy-duty tool steels, and engineering plastics like PEEK and Delrin. When selecting a local partner, always ask if they have experience cutting your specific material, as exotic alloys require different spindle speeds, rigid workholding, and specialized tooling.
Conclusion
Finding a reliable partner for 5-axis CNC in Oak Brook does not have to be a headache. By focusing on local shops with robust quality management systems, clear communication, and the technical expertise to handle complex geometries in a single setup, you can keep your production lines running smoothly and eliminate the risk of late deliveries.
At ITSE Inc., we understand the critical role that precision machining plays in industrial success. While we are proud to manufacture industry-leading, US-made precision OD bead choppers, ID scarfing systems, and custom tube mill equipment, we also know that our local manufacturing community thrives when businesses connect with the right capabilities.
If you are ready to discuss your next precision machining project, explore our comprehensive Cnc Machining services to see how we can help bring your most complex designs to life with the quality and speed your business deserves.
